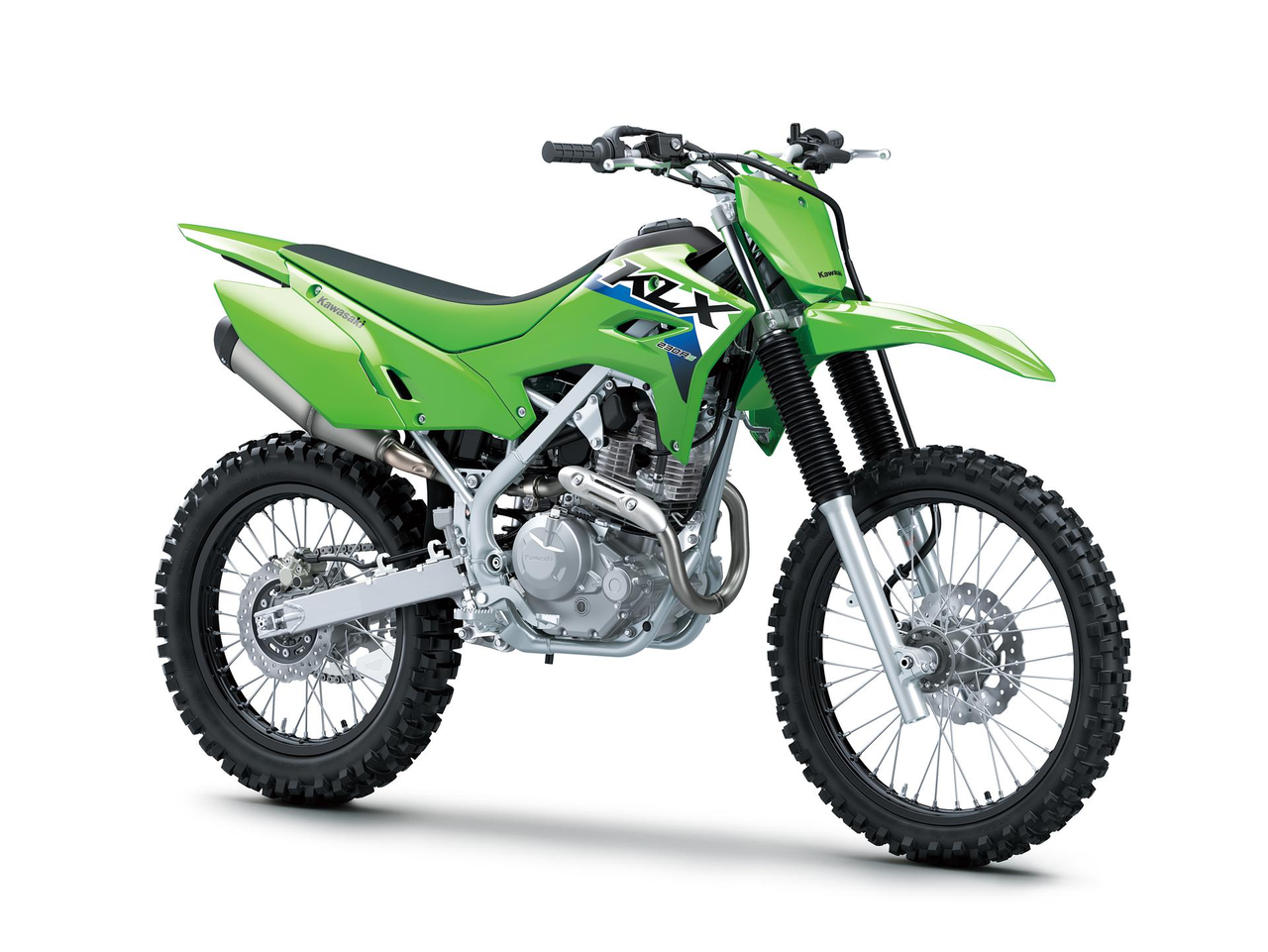

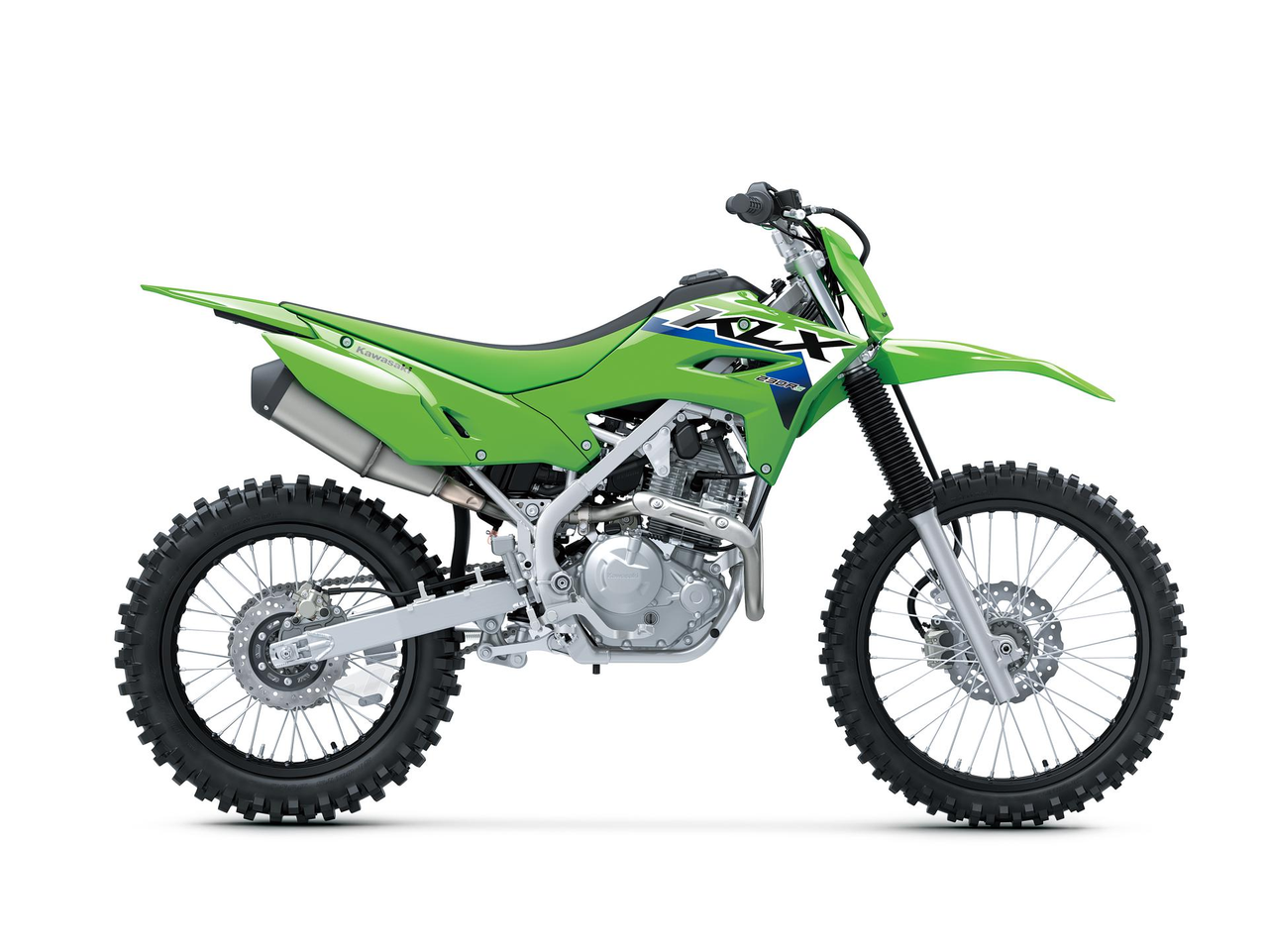

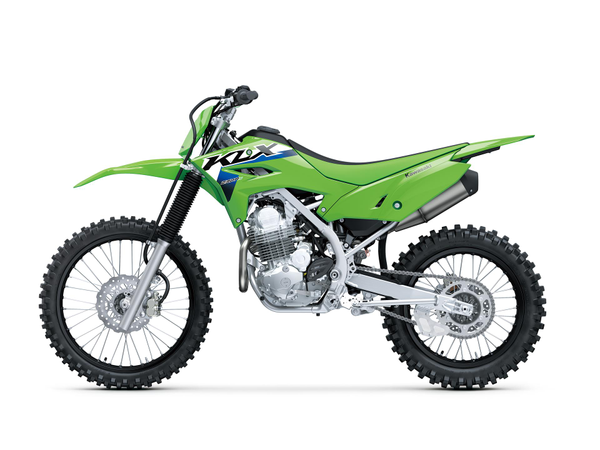

When the road is challenging, the new KLX230R is ready with longer wheel travel and ample ground clearance. Thicker seat cushioning makes bumpy trails a pleasure to ride, while the great performance of the tried-and-true engine has been augmented with a balancer for an even more enjoyable and useful offroad machine, and a larger fuel tank means more time on the trail between fill-ups.
Providing a light, maneuverable package has been a key consideration since the KLX230R was originally designed. It’s simple air-cooled engine and easy handling perimeter frame contribute to a compact package, while the balance between the engine and frame results in performance that can be enjoyed by a wide range of riders.
A 7.6 litre fuel tank (compared to the previous model’s 6.6 litres) adds more range and allows longer intervals between refueling for more fun riding time. The fuel tank also features a key-operated tank cap.
Designed from the start for dirt-riding use, the high tensile steel perimeter frame offers the handling stability needed for confident trail riding. The seat height is 20 mm lower to make the machine easier to use, which combined with an overall more balanced rider’s triangle (handlebars, seat and footpegs) suits a wider range of riders.
The latest KX series’ “Aggressive & Agile” design concept is retained, with a flat design that flows from the front to rear fender, creating a sense of unity and a sharp overall look. The smooth bodywork was designed to have as few protruding parts as possible to facilitate moving around, contributing to excellent ergonomics.

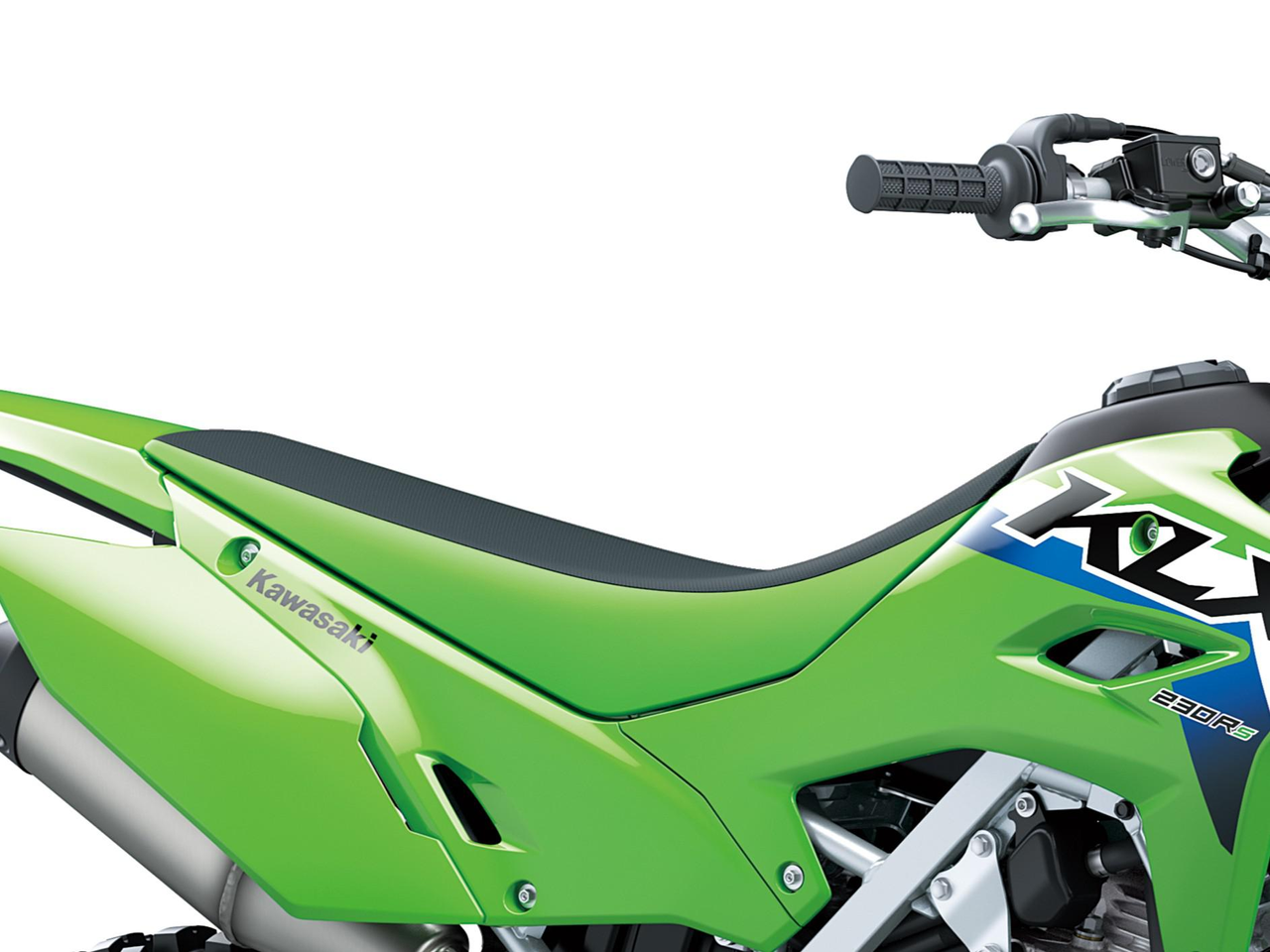

The KLX230R’s newly designed seat has 6 mm thicker urethane for a more comfortable ride, while retaining a flat silhouette that offers the rider freedom of movement, resulting in a very comfortable yet highly functional seat for off-road riding.

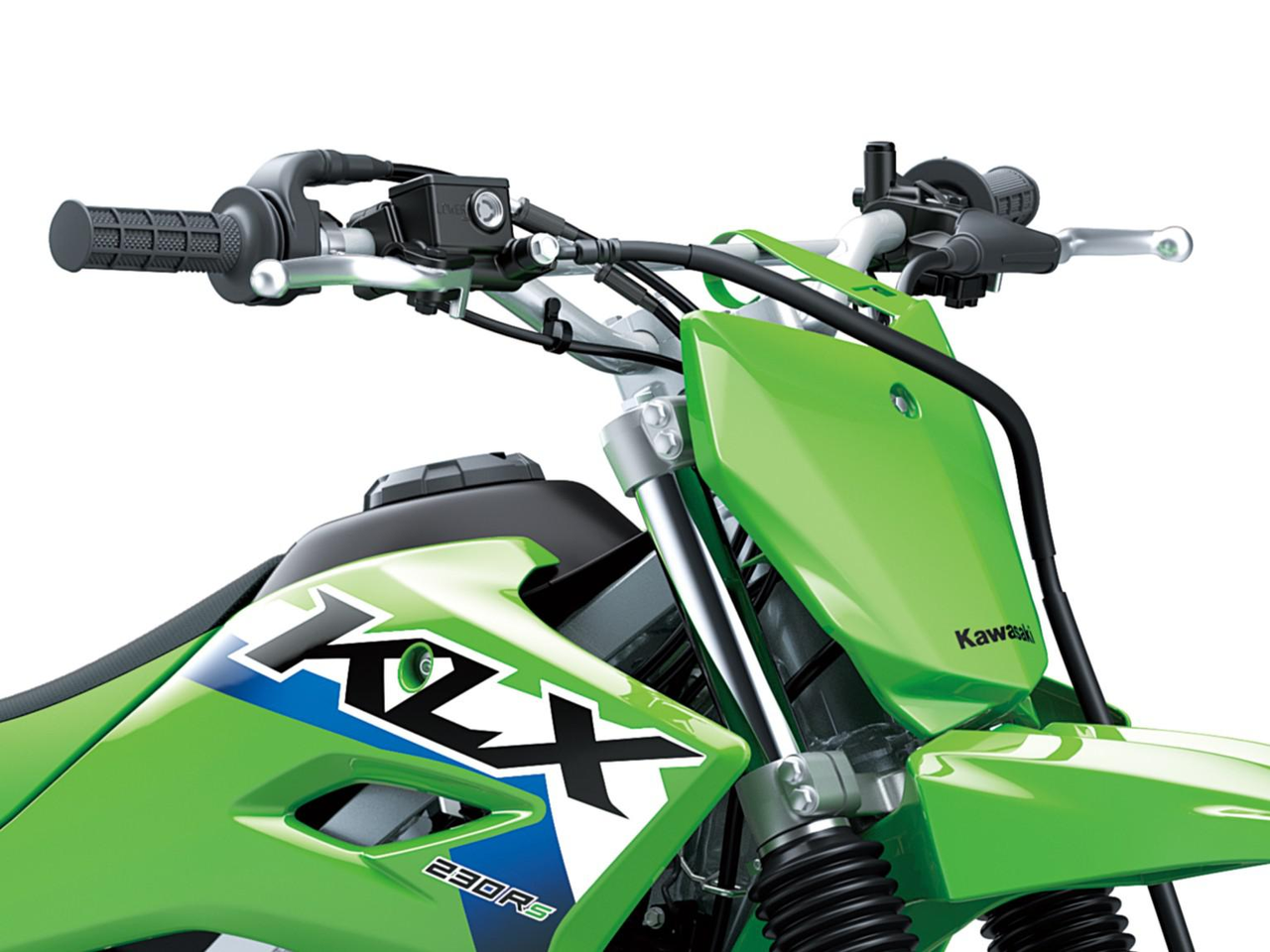

The handlebars are 25 mm further forward than the previous model’s to match the lower seat height, offering the rider excellent control, which translates to improved handling when cornering. The footpegs are 9 mm further to the rear to achieve a riding position with added control.

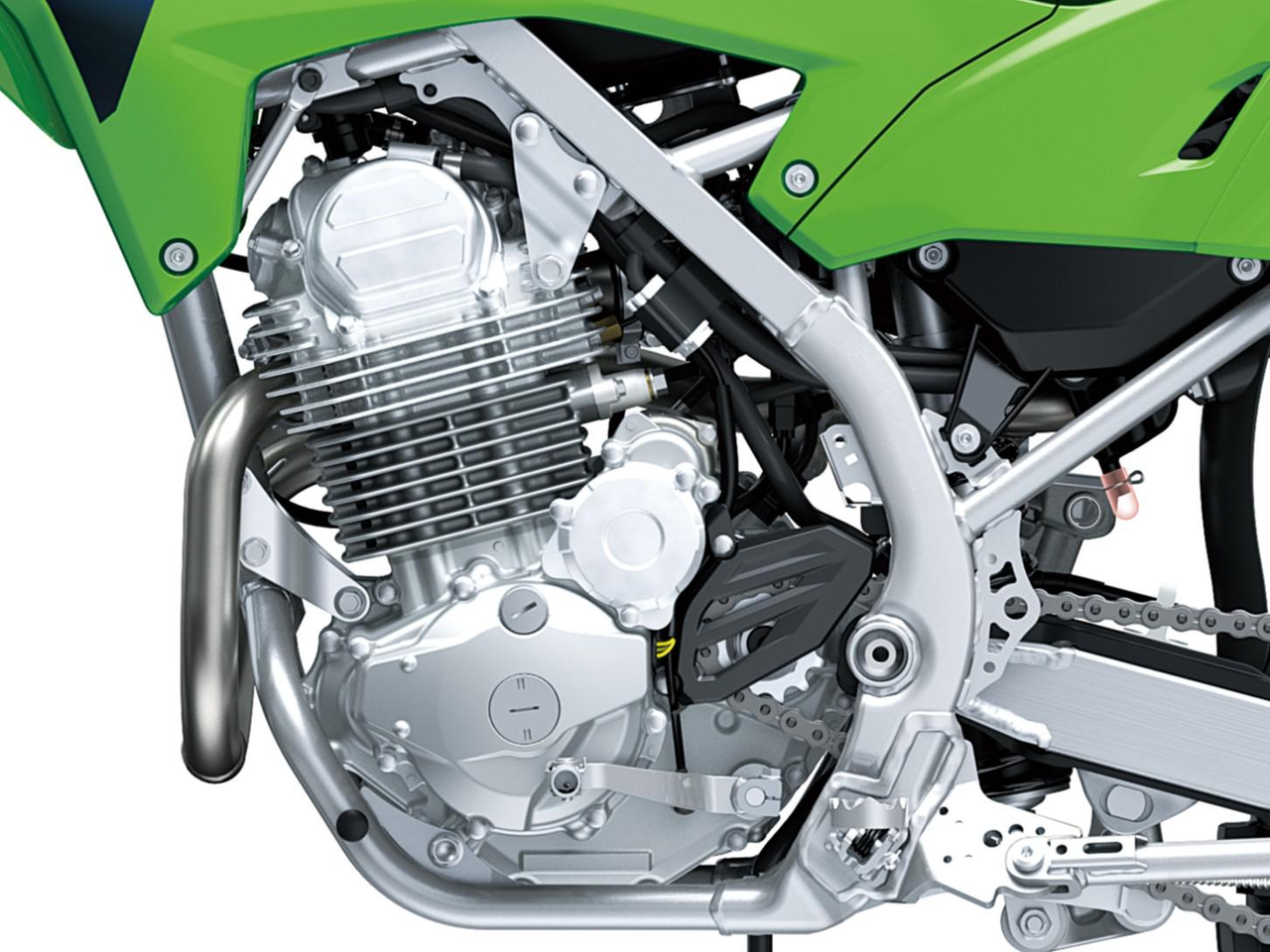

The KLX230R’s updated engine offers more low- to midrange torque for low-speed control, resulting in a rider-friendly engine character and linear acceleration. This combined with the low-speed feeling makes this play bike even more fun than before.

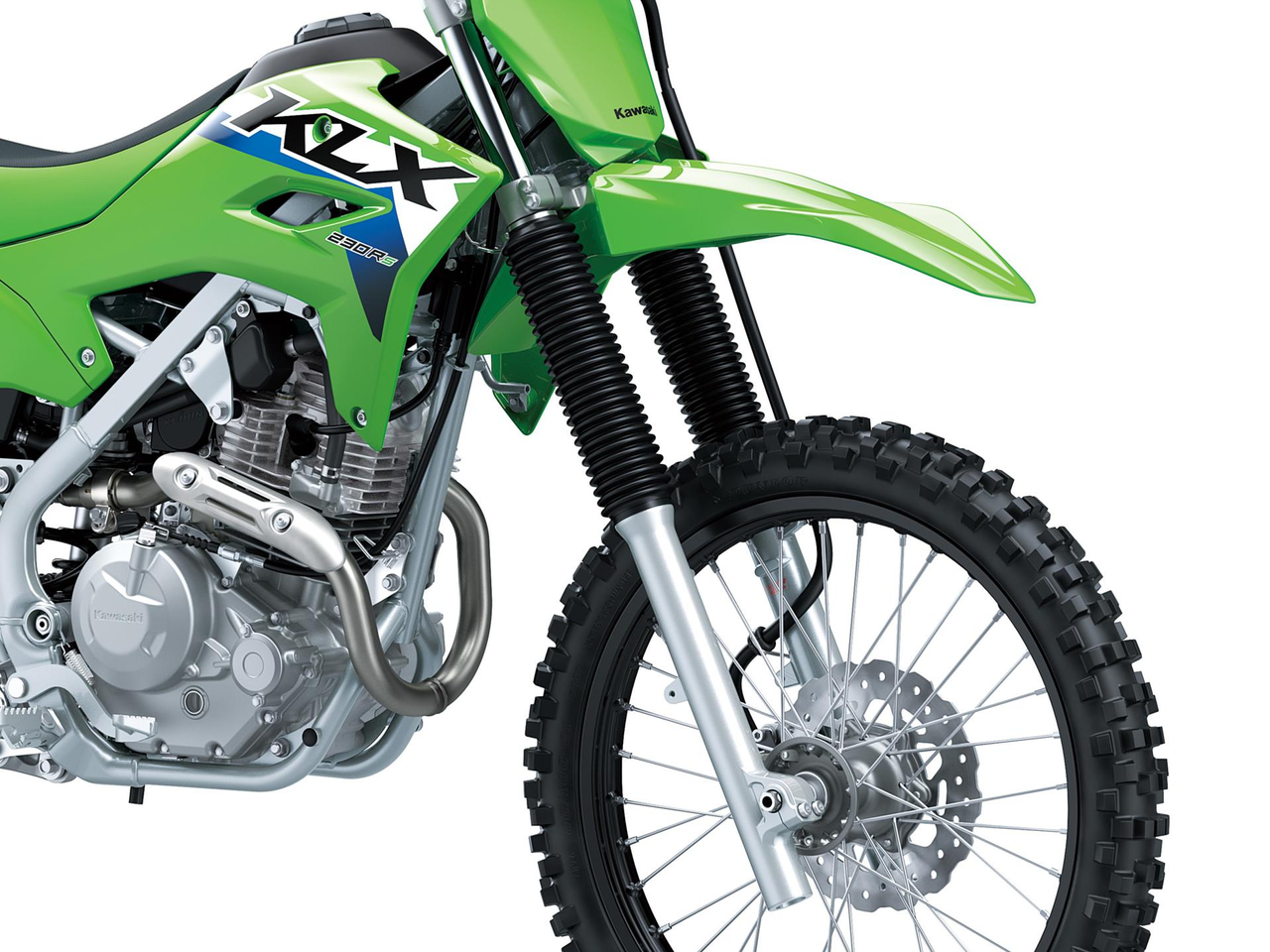

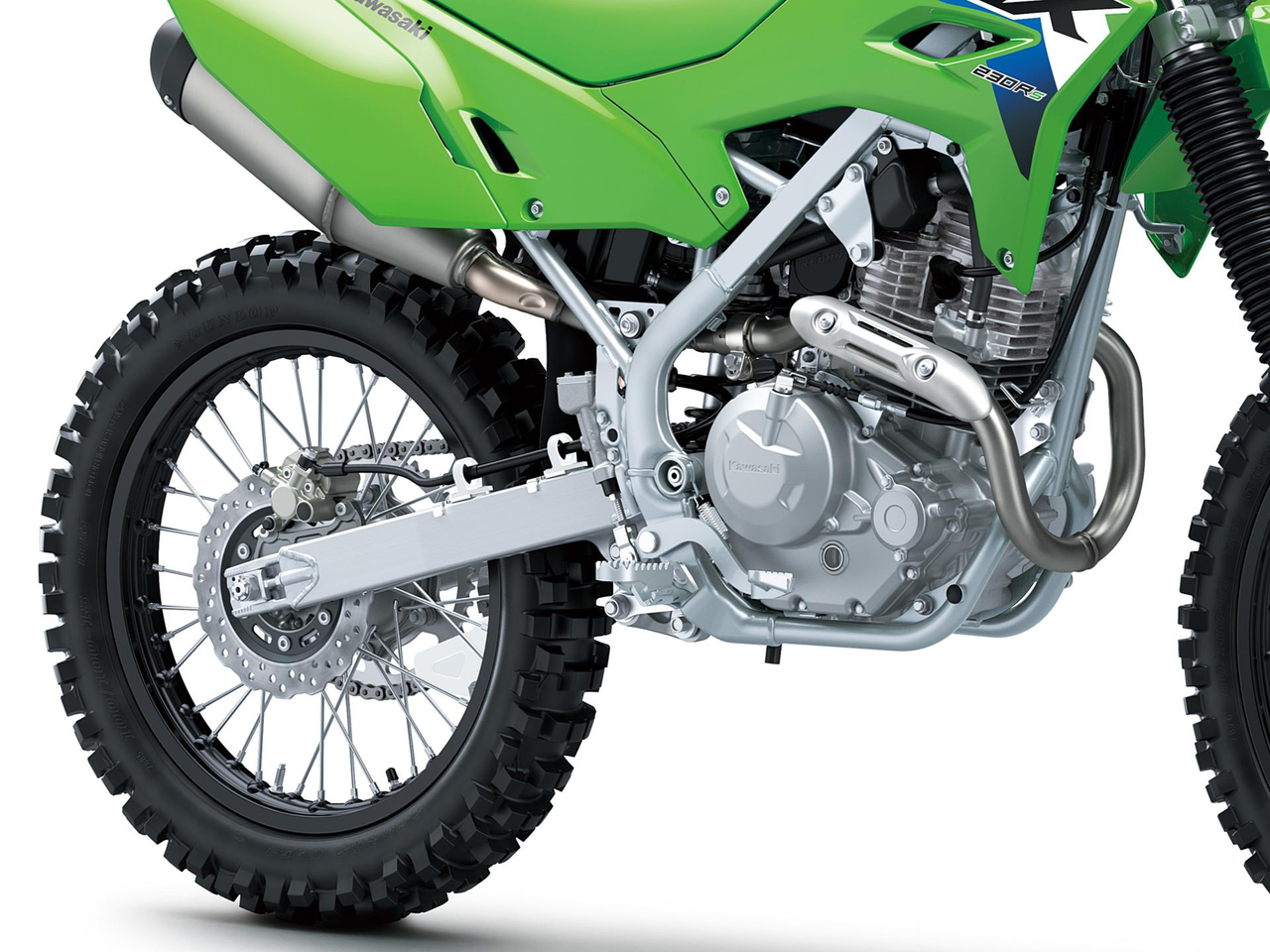

Ample wheel travel is available at the at the front and rear thanks to an ideally-suited suspension, while large diameter aluminium wheels, measuring 21” at the front and 18” at the rear efficiently navigate trails, the combination of which greatly contributes to trail-riding performance.
L'ERGO-FIT est une interface qui permet à tout type de pilote de se sentir parfaitement en harmonie avec sa machine, en garantissant qu'il soit aussi à l'aise que possible.
| Type de moteur | Monocylindre 4 temps à refroidissement par air |
|---|---|
| Taux de compression | 9.4:1 |
| Système de distribution | SOHC, 2 valves |
| Alésage x course | 67.0 x 66.0 mm |
| Cylindrée | 233 cm³ |
| Système d'alimentation | : 32 mm x 1 |
| Lubrification | Lubrification forcée, carter humide |
| Système de démarrage | Électrique |
| Système d'allumage | Batterie et bobine (allumage transistorisé) |
| Transmission | 6 rapports |
|---|---|
| Embrayage | Embrayage multidisque à bain d'huile |
| Rapport de réduction primaire | 2.871 (89/31) |
| Rapports de première vitesse | 3.000 (39/13) |
| Rapports de seconde vitesse | 2.067 (31/15) |
| Rapports de troisième vitesse | 1.556 (28/18) |
| Rapports de quatrième vitesse | 1.261 (29/23) |
| Rapports de cinquième vitesse | 1.040 (26/25) |
| Rapports de sixième vitesse | 0.852 (23/27) |
| Entraînement final | Chaîne |
| Rapport de réduction finale | 3.538 (46/13) |
| Type de cadre | Double berceau tubulaire |
|---|---|
| Chasse | 100 mm |
| Débattement de la roue avant | 220 mm |
| Débattement de la roue arrière | 217 mm |
| Pneu, avant | 80/100-21 51M |
| Pneu, arrière | 100/100-18 59M |
| L x l x H | 2,035 x 845 x 1,185 mm |
| Angle de direction G/D | 45° / 45° |
| Empattement | 1,355 mm |
| Garde au sol | 270 mm |
| Capacité de carburant | 7.6 litres |
| Hauteur de selle | 875 mm |
| Poids tous pleins faits* | 119 kg |
| | *Curb mass includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Estimated dry weight** | 112 kg |
| | **Estimated Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Freins, avant | Frein à disque, design pétale |
|---|---|
| Diamètre des freins avant | Ø 240 mm |
| Type d'étrier de frein avant | Double piston |
| Freins, arrière | Disque simple en pétale |
| Diamètre du frein arrière | Ø 220 mm |
| Type d'étrier de frein arrière | Piston simple |
| Suspension, avant | Fourche télescopique |
| Diamètre de la suspension avant | Ø 37 mm |
| Suspension, arrière | Uni-Trak, précharge du ressort réglable |
